Are you about to install a 1/4 rivet nut but unsure what size drill bit you need? Choosing the right drill bit is crucial to make sure your rivet nut fits perfectly and holds strong.

Using the wrong size can lead to weak connections or damaged materials. You’ll discover exactly which drill bit size works best for a 1/4 rivet nut. Keep reading to avoid costly mistakes and get your project done right the first time.

Credit: rivetfix.com

Choosing The Right Drill Bit

Using the correct drill bit is important for installing a 1/4 inch rivet nut. The drill bit size affects how well the rivet nut fits and holds in place.

Choosing the right drill bit depends on the rivet nut size, the material you are drilling into, and the type of drill bit you use. This guide helps you pick the best drill bit.

Matching Drill Bit To Rivet Nut Size

The drill bit hole should match the outer diameter of the rivet nut body. For a 1/4 inch rivet nut, the correct drill bit size is usually 17/64 inch or 7 mm.

Drilling a hole too small will not fit the rivet nut. A hole too large will weaken the hold. Always check the rivet nut package for exact drill size.

Material Considerations

The material you drill into changes the type of drill bit to use. Softer materials like wood or plastic need less powerful bits. Hard metals need stronger bits with special tips.

Always use a drill bit designed for the material. Using the wrong bit can cause damage or make the hole too big or rough.

• Wood: Use standard twist drill bits
• Aluminum and soft metals: Use high-speed steel bits
• Hardened steel: Use cobalt or carbide-tipped bits
• Plastic: Use sharp bits to avoid cracking

Types Of Drill Bits Suitable For Rivet Nuts

Different drill bits fit different jobs. For a 1/4 inch rivet nut, the most common drill bits are twist drills, step drills, and hole saws.

Twist drill bits are good for most metals and plastics. Step drill bits make clean holes in thin materials. Hole saws are for larger holes but not usually needed for 1/4 inch rivet nuts.

• Twist Drill Bits: Best for general use and metal
• Step Drill Bits: Good for thin metal sheets
• Carbide-Tipped Bits: For hard materials
• High-Speed Steel Bits: Versatile and durable

Credit: www.vevor.com.au

Measuring Rivet Nut Dimensions

Understanding rivet nut dimensions is crucial for proper installation. This guide will help you measure them accurately.

Rivet nuts come in various sizes, and knowing which drill bit to use is essential. Let's dive into the specifics.

Inner Diameter And Thread Size

The inner diameter and thread size are key to fitting rivet nuts properly. Ensure your measurements are precise.

1. Measure the inner diameter with a caliper.
2. Check the thread size on the rivet nut package.
3. Match the drill bit to the inner diameter.

Outer Diameter And Flange Size

The outer diameter and flange size affect the stability of the rivet nut. These measurements prevent installation errors.

Drilling Techniques For Rivet Nuts

Choosing the right drill bit size is key for installing 1/4 rivet nuts. Proper drilling helps the rivet nut fit tightly and hold strong.

This guide covers how to mark, drill, and avoid mistakes when working with rivet nuts.

Marking And Center Punching

Start by marking the exact drill spot on the material. Use a ruler or template for accuracy.

After marking, use a center punch to make a small dent. This dent keeps the drill bit from slipping.

Drilling Speed And Pressure

Use a drill speed of about 1000 to 1500 RPM for metal sheets. Too fast can overheat the bit.

Apply steady and moderate pressure. Pressing too hard can break the bit or cause a rough hole.

Avoiding Common Drilling Mistakes

• Do not use a drill bit that is too large or too small for the rivet nut.
• Avoid drilling at an angle; keep the drill perpendicular to the surface.
• Do not rush; slow and steady drilling gives a cleaner hole.
• Use cutting oil to reduce heat and improve drill bit life.
• Replace dull drill bits to avoid rough holes and damage.

Tips For Clean And Accurate Holes

Drilling the correct size hole is key to fitting a 1/4 inch rivet nut properly. Clean and accurate holes help the rivet nut sit tight and work well. Use the right tools and methods to avoid mistakes.

This guide shares tips to drill holes that fit rivet nuts perfectly. Follow these steps for better results and less rework.

Using Pilot Holes

Start with a small pilot hole before drilling the final size. This guides the drill bit and keeps it from wandering. A pilot hole makes drilling easier and more precise.

1. Mark the spot where you want the hole.
2. Use a small drill bit to make a pilot hole.
3. Check the hole for correct placement.
4. Drill the final hole size using the correct drill bit for a 1/4 inch rivet nut.

Deburring After Drilling

After drilling, remove sharp edges and debris from the hole. Deburring helps the rivet nut sit flush and prevents damage during installation.

• Use a deburring tool or a countersink bit.
• Run the tool gently around the hole edge.
• Clear out any metal shavings or dust.
• Check the hole edge for smoothness.

Ensuring Proper Hole Alignment

Proper alignment keeps your rivet nut strong and secure. Misaligned holes cause weak holds or damage during installation.

Tools And Accessories For Rivet Nut Installation

Installing a 1/4 rivet nut requires the right tools to ensure a secure fit. Using the correct drill bit size is essential for a clean hole. This helps the rivet nut sit properly without damage.

Besides the drill bit, having the proper accessories can make the job easier and faster. Let's explore some key tools used for rivet nut installation.

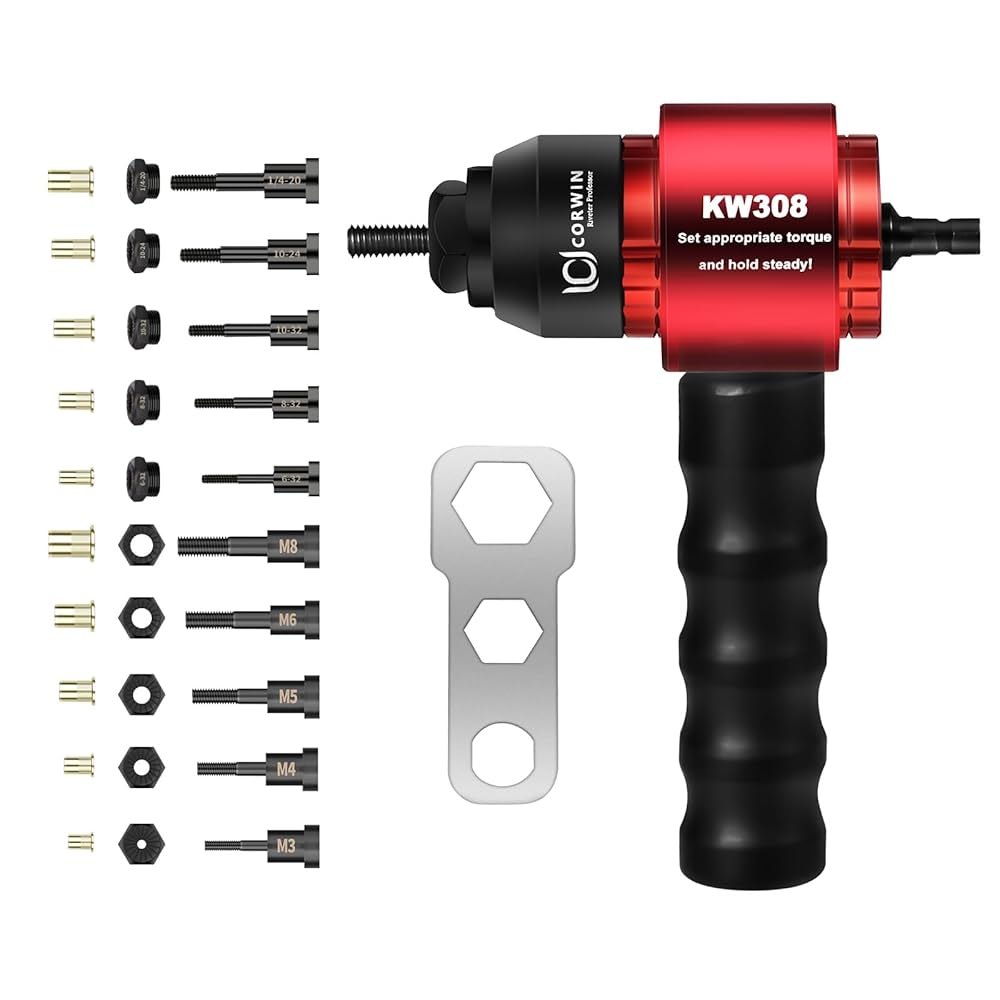

Rivet Nut Tools And Inserts

Rivet nut tools help you insert rivet nuts smoothly and hold them firmly. They come in hand tools or power tool attachments. Inserts match different rivet nut sizes and types.

Using the right insert ensures the rivet nut fits tightly and stays secure. Some tools offer interchangeable inserts for various rivet nut sizes, including 1/4 inch.

• Hand rivet nut tool: For manual installation
• Power drill adapter: Fits rivet nut tools to drills
• Interchangeable inserts: Match rivet nut sizes
• Threaded mandrels: Pull the rivet nut into place

Drill Bit Sharpeners And Guides

Drill bit sharpeners keep your bits cutting cleanly. Sharp bits make precise holes for rivet nuts. Dull bits can cause rough holes and weak installs.

Drill bit guides help keep holes straight and the right size. They prevent the bit from wandering on the material. This is important for accurate rivet nut placement.

• Sharpeners: Restore drill bit edges
• Guides: Hold bits steady during drilling
• Drill bits sized for 1/4 inch rivet nuts: Usually 17/64 inch or 7mm

Credit: www.ebay.com

Troubleshooting Drilling Issues

Using the right drill bit size is important for a 1/4 rivet nut. Drilling problems can cause bad fits or damage. Fixing these issues helps you get good results.

This guide covers common drilling problems and how to solve them. Learn to handle slippage, breakage, and wrong hole sizes.

Dealing With Slippage And Wander

Drill bits can slip or wander on the material. This makes the hole off-center or too big. It happens on smooth or hard surfaces.

To stop slippage, use a center punch to make a small dent before drilling. This guides the drill bit. Start drilling slowly to keep control.

• Mark the spot with a center punch
• Use a drill bit with a sharp tip
• Hold the drill steady and straight
• Drill at low speed at first

Handling Drill Bit Breakage

Drill bits can break if too much pressure is used or if the bit is dull. Broken bits waste time and can ruin the material.

Use a sharp, good-quality bit. Let the drill do the work. Press lightly and keep the drill straight. Stop if the bit gets too hot and cool it down.

• Choose the right bit size and type
• Keep the drill speed moderate
• Apply gentle, steady pressure
• Use cutting oil on metal surfaces
• Replace dull bits promptly

Fixing Oversized Or Undersized Holes

Holes that are too big or too small cause rivet nuts to fit poorly. This weakens the hold or makes installation impossible.

If the hole is too small, carefully drill it larger with the correct bit size. If it is too big, use a larger rivet nut or fill the hole and drill again.

• Measure hole diameter before installing
• Use the recommended drill bit for 1/4 rivet nut (usually 7/16 inch)
• For small holes, slowly enlarge with the right bit
• For big holes, fill with epoxy or metal filler
• Drill a new hole after filler cures

Frequently Asked Questions

What Drill Bit Size Fits A 1/4 Inch Rivet Nut?

For a 1/4 inch rivet nut, use a 17/64 inch drill bit. This size creates the correct hole for secure installation. Always double-check the rivet nut manufacturer’s recommendation for best results.

Can I Use A Larger Drill Bit For A 1/4 Rivet Nut?

Using a larger drill bit can cause a loose fit. It reduces the rivet nut’s holding strength. Stick to the recommended 17/64 inch size to ensure proper grip and durability.

How To Choose The Right Drill Bit For Rivet Nuts?

Match the drill bit size to the rivet nut’s outer diameter. Check the product specifications or packaging. Correct sizing ensures easy installation and strong fastening.

What If The Drill Bit Is Too Small For A 1/4 Rivet Nut?

A smaller drill bit creates a tight hole, making insertion difficult. It can deform the rivet nut during installation. Always use the exact recommended drill bit size for smooth fitting.

Conclusion

Choosing the right drill bit size makes installing 1/4 rivet nuts easier. Use a 17/64 inch drill bit for a perfect fit. This size helps the rivet nut stay secure and strong. Drilling the correct hole prevents damage and saves time.

Always check your rivet nut instructions for best results. Remember, the right tools lead to better work and fewer mistakes. Keep this simple tip in mind for your next project. It makes a big difference in the end.
