Wiring a 2 way switch might sound tricky, but it doesn’t have to be. Imagine controlling a single light from two different places—like at the top and bottom of your stairs.

If you want to know exactly how to set this up, you’re in the right place. This guide will break down the wiring step-by-step, with clear diagrams and easy explanations. By the end, you’ll feel confident handling your own 2 way switch project safely and efficiently.

Ready to get started? Let’s dive in.

Credit: serviceteam.co.uk

Basics Of A 2 Way Switch

A 2 way switch controls a light or device from two places. It is common in hallways or large rooms.

This switch setup makes it easy to turn lights on or off from different locations.

What Is A 2 Way Switch

A 2 way switch is a type of electrical switch. It has two switches controlling one light or device.

Each switch can turn the light on or off independently. This is done using special wiring called "two-way wiring."

• Two switches connected by traveler wires
• One common terminal on each switch
• Allows control from two separate points

Common Uses In Homes

People use 2 way switches in places where two entrances exist. It helps control lights easily from both ends.

Some common locations for 2 way switches include:

• Hallways with two doorways
• Staircases with switches at top and bottom
• Large rooms with multiple entrances
• Garages or basements with two access points

Tools And Materials Needed

Wiring a 2-way switch is a useful skill. It helps control lights from two locations. You need the right tools and materials to do it safely.

Having everything ready before you start makes the job easier. Here’s a guide to what you need.

Essential Tools

These tools help you work efficiently. They ensure your wiring is safe and secure.

• Screwdriver: Used to tighten or loosen screws on switches and plates.
• Wire Strippers: Essential for removing insulation from wires.
• Voltage Tester: Checks if the power is off before you start.
• Needle-nose Pliers: Helps twist wires and reach tight spaces.

Required Electrical Components

These components are necessary for the wiring process. They make sure your switch works properly.

• Two-way Switches: You need two switches to control one light from two places.
• Electrical Wires: Connect the switches and the light. Use the right gauge for safety.
• Wire Nuts: Securely connect wires together.
• Switch Box: Houses the switch and protects the wiring.
• Faceplate: Covers the switch for a neat finish.

Safety Precautions

Wiring a 2 way switch can be dangerous if you do not follow safety rules. It is important to protect yourself from electric shocks and accidents. Always prepare before starting any electrical work.

This guide covers basic safety steps to help keep you safe while wiring a 2 way switch.

Turning Off Power

Always turn off the power before working on any electrical circuit. This stops electricity from flowing and reduces the risk of shock. Find the right switch on your breaker box and switch it off.

Use a tester to check if the wires are live. If the tester shows no power, it is safe to begin your work.

• Locate the main breaker panel
• Switch off the breaker for the circuit
• Use a voltage tester on the wires
• Confirm no power is present

Using Proper Protective Gear

Wear the right protective gear to guard yourself during wiring. Gloves and safety glasses protect your hands and eyes. Use insulated tools to avoid electric shocks.

Good lighting helps you see clearly. Avoid loose clothing that might catch on wires or switches.

• Wear rubber-insulated gloves
• Use safety goggles
• Use insulated screwdrivers and pliers
• Wear close-fitting clothes
• Work in a well-lit area

Credit: www.reddit.com

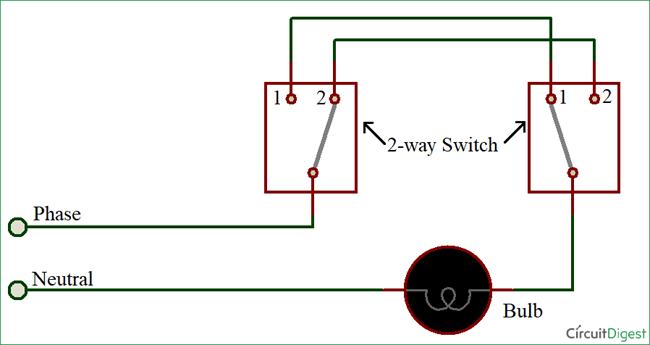

Wiring Diagram Explained

A 2 way switch lets you control one light from two places. It is common in hallways and stairs.

The wiring diagram shows how to connect switches and wires. It helps you understand the circuit clearly.

Key Symbols And Lines

Electrical diagrams use symbols to show parts like switches and lights. Lines show the wires connecting them.

• Switch symbol:Two dots with a line that moves to connect them.
• Light symbol:A circle with a cross inside.
• Live wire:A solid line usually in red or brown.
• Neutral wire:A solid line usually in blue.
• Traveler wires:Lines that connect the two switches.

How The Circuit Works

Two switches control one light by opening or closing the circuit. Flipping either switch changes the light’s state.

The live wire brings power to the first switch. Traveler wires connect the two switches. The second switch connects power to the light.

• When both switches connect, power flows to the light and it turns on.
• Changing any switch breaks the path and turns off the light.
• This lets you turn the light on or off from two different places.

Step-by-step Wiring Process

Wiring a 2 way switch allows you to control one light from two locations. This setup is common in hallways and stairs. Follow these simple steps to wire your switches correctly.

Make sure to turn off the power before starting. Use proper tools and safety gear for all steps.

Preparing The Wires

Start by identifying all wires in the switch boxes. You usually find a live wire, two traveler wires, and a ground wire. Strip about 1 cm of insulation from each wire end.

Use a voltage tester to confirm no current flows in the wires. This step keeps you safe while working.

Connecting The Switches

Connect the live wire to the common terminal on the first switch. Then attach the two traveler wires to the traveler terminals on both switches. Finally, connect the ground wires to the switches’ ground screws.

• Live wire to common terminal on switch one
• Traveler wires connect traveler terminals on both switches
• Ground wires connect to ground screws on switches

Make sure all connections are tight and secure. Loose wires can cause problems or hazards.

Testing The Setup

Turn the power back on after wiring is complete. Test each switch by turning the light on and off from both locations. Both switches should control the light independently.

If the light does not work properly, turn off the power and check all wire connections again. Fix any loose or wrong connections before testing again.

Troubleshooting Tips

Wiring a 2 way switch can be tricky. Small mistakes cause the switch not to work properly. Troubleshooting helps find and fix these problems.

This guide covers common wiring mistakes and how to fix issues step by step. Follow carefully to get your switch working safely and correctly.

Common Wiring Mistakes

Many wiring problems happen because of simple errors. These mistakes cause the switch to fail or create safety hazards.

• Mixing up the traveler wires
• Connecting the live wire to the wrong terminal
• Failing to connect the neutral wire properly
• Loose or poor wire connections
• Using the wrong switch type for a 2 way circuit

How To Fix Issues

Check each wire and connection carefully. Use a voltage tester to confirm the power is off before working.

Upgrading To Smart Switches

Upgrading to smart switches is a popular way to modernize home lighting. Smart switches let you control lights from your phone or voice assistant.

Replacing a traditional 2 way switch with a smart switch needs careful wiring. It is important to know how the switch works before installation.

Compatibility Considerations

Not all smart switches work with every home wiring setup. Check if your wiring supports a neutral wire. Most smart switches need a neutral wire to function.

Make sure the smart switch can replace a 2 way switch. Some smart switches are only for single-pole setups. Also, check if the switch works with your home's voltage and load.

• Confirm presence of a neutral wire in the switch box
• Choose smart switches designed for 2 way wiring
• Check voltage compatibility (usually 120V or 240V)
• Verify load type (LED, incandescent, etc.)

Basic Installation Steps

Turn off power at the circuit breaker before starting. Remove the old switch and note the wiring connections. Label wires if needed.

Connect the smart switch wires to the corresponding house wires. Usually, the black (line) wire connects to the switch's line terminal. The red or traveler wires connect to traveler terminals. Connect the neutral wires together and to the switch if needed.

• Turn off power at the breaker
• Remove old 2 way switch carefully
• Identify and label line, traveler, and neutral wires
• Connect wires to the smart switch terminals
• Secure the switch and restore power
• Test the switch with your app or voice control

Credit: circuitdigest.medium.com

Frequently Asked Questions

What Is A 2 Way Switch Wiring Diagram?

A 2 way switch wiring diagram shows how to connect two switches to control one light. It details the live, neutral, and traveler wire connections for proper function.

How Do I Wire A 2 Way Switch Step-by-step?

Turn off power first. Connect live wire to switch terminals. Link traveler wires between switches. Connect load wire to light fitting. Finally, restore power and test the switches.

Can I Use A 2 Way Switch For Multiple Lights?

Yes, a 2 way switch can control multiple lights if wired correctly. All lights connect to the same load wire from the switch.

What Tools Are Needed For Wiring A 2 Way Switch?

You need a screwdriver, wire stripper, voltage tester, electrical tape, and wire connectors. These tools ensure safe and accurate installation of the 2 way switch.

Conclusion

Wiring a 2 way switch is simpler than it seems. Follow the steps carefully for safety and success. Check all connections before turning the power on. Using the right tools makes the job easier. Practice patience and double-check your work.

This guide helps you control lights from two spots. Feel confident to try it yourself. Take your time, and stay safe throughout the process. You can make your home lighting more convenient today.
